The Icom IC-7610 SDR HF/6m Transceiver

by Adam Farson VA7OJ/AB4OJ

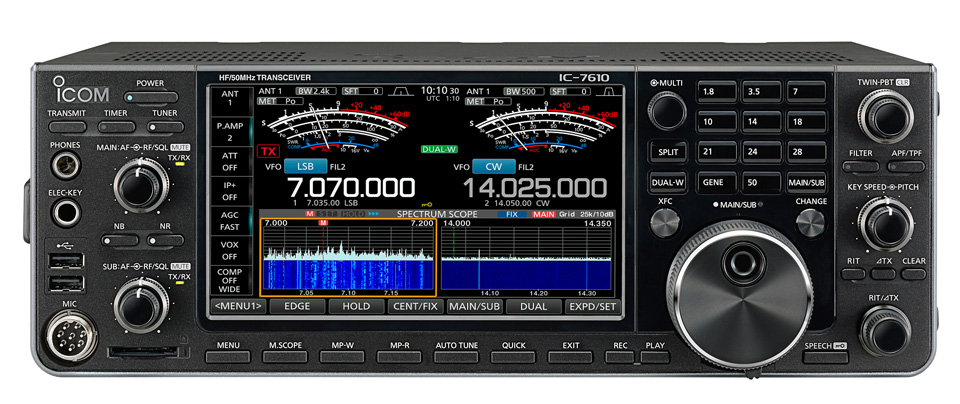

The IC-7610. Photo courtesy Icom Inc. Click for larger image.

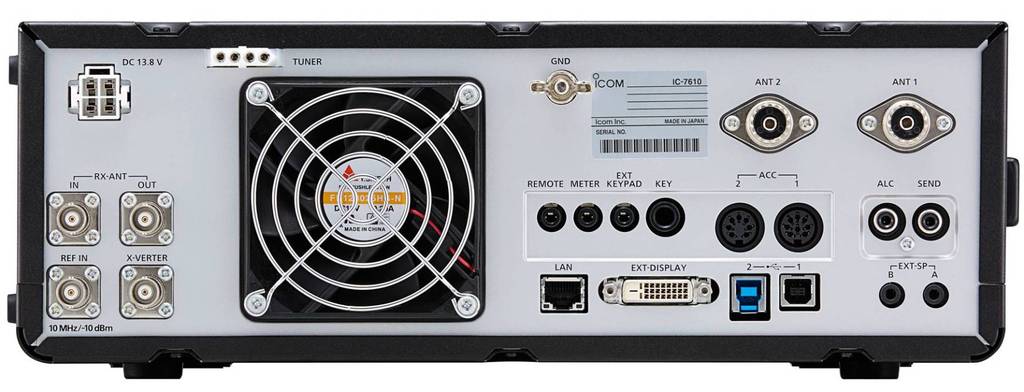

IC-7610 rear panel. Photo courtesy Icom Inc.

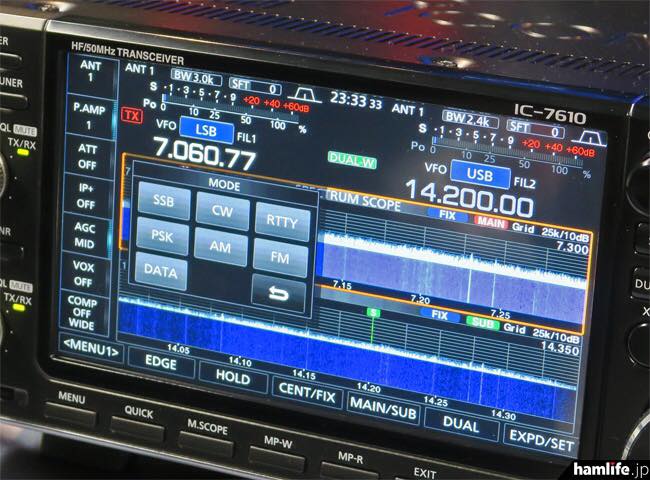

IC-7610 screen view (courtesy hamlife.jp)

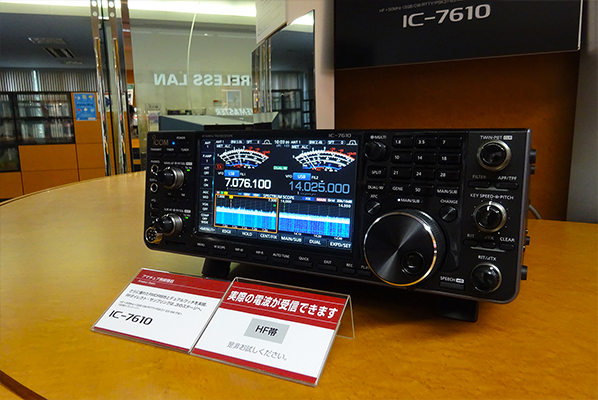

IC-7610 at Icom's Osaka showroom (courtesy Icom Inc.)

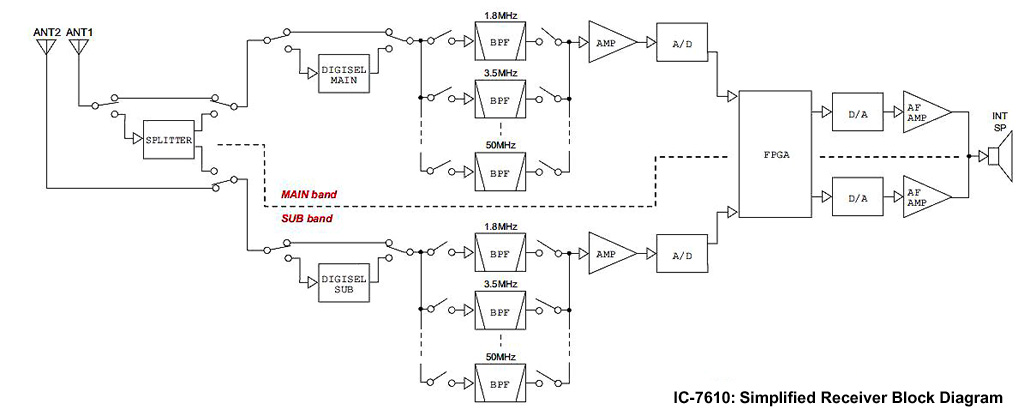

Simplified block diagram of IC-7610 receiver (courtesy Icom Inc.)

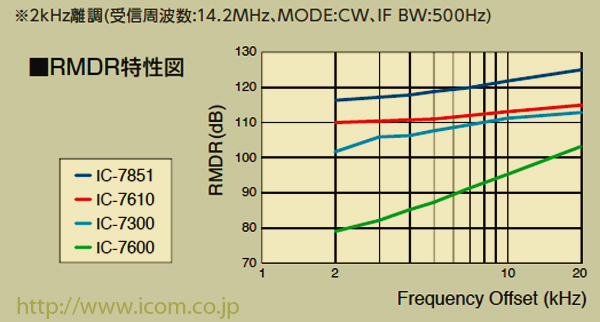

RMDR comparison chart (courtesy Icom Inc.)

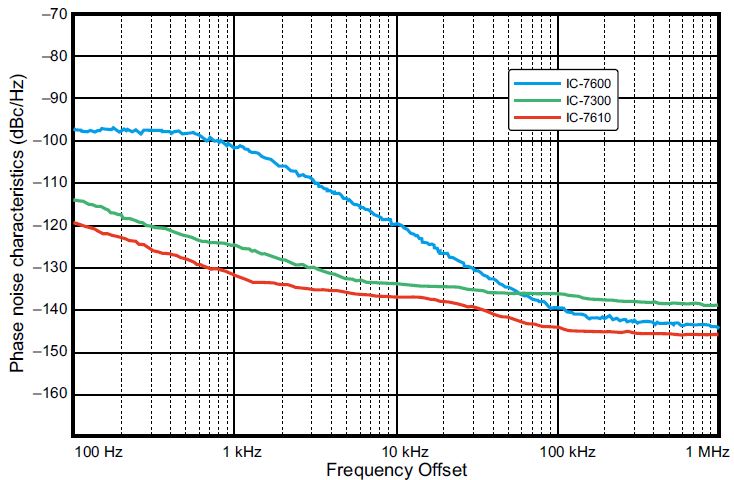

Transmitter phase noise comparison chart (courtesy Icom Inc.)

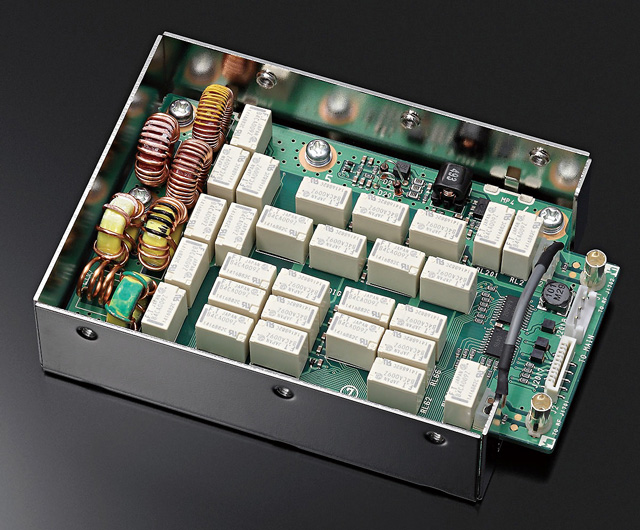

DIGI-SEL preselector module (courtesy Icom Inc.) Click for larger image.

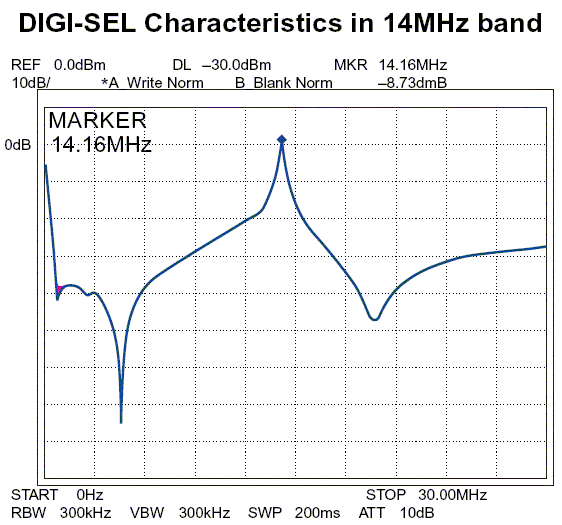

Typical DIGI-SEL Amplitude/Frequency Curve. Click for description.

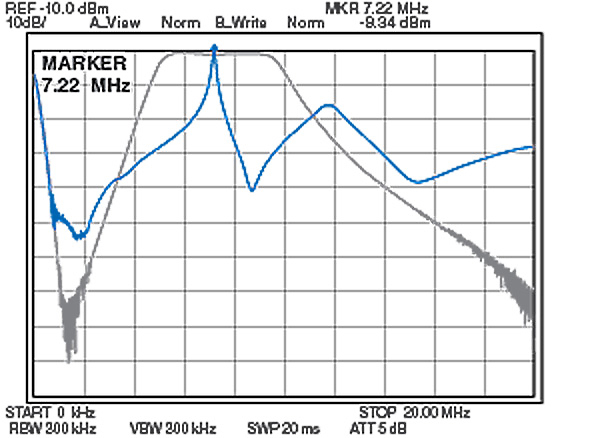

BPF & Digi-Sel passband, receiving on 7.22MHz. Courtesy Icom Inc.

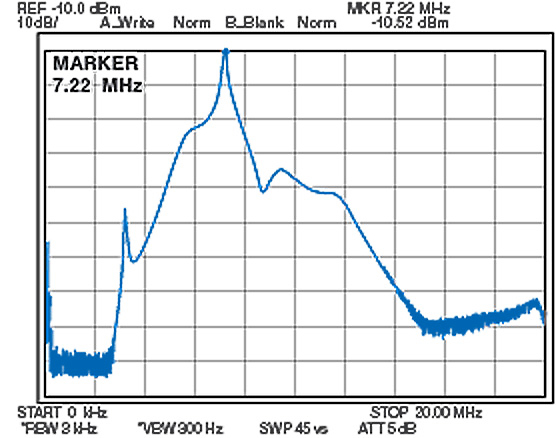

Passband between antenna & Digi-Sel (at Digi-Sel output). Courtesy Icom Inc.

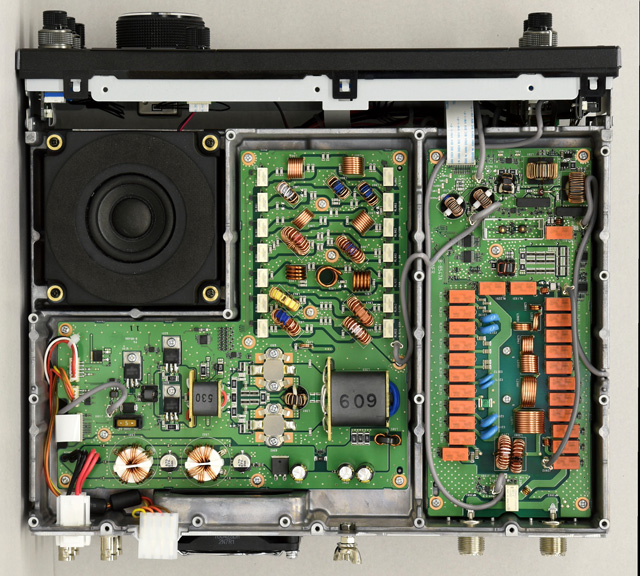

IC-7610 interior top view (courtesy Icom Inc.) Click for larger image.

Top left: speaker box. Top centre: PA harmonic filters. Bottom left: PA. Right: Relay-chain ATU.

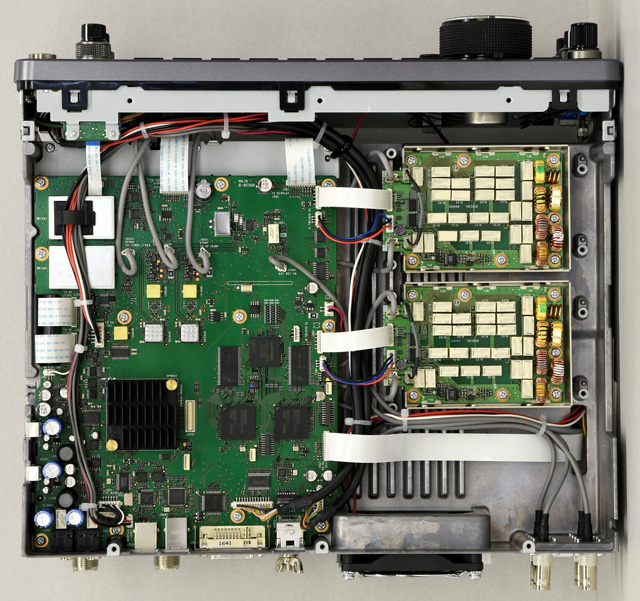

IC-7610 interior bottom view (courtesy Icom Inc.) Click for larger image.

L: MAIN Unit (note FPGA & ADC heatsinks). RF BPF Units under MAIN Unit. R: DIGI-SEL Units (top: Main).

IC-7610 RF FPGA IC.		IC-7610 VCXO clock.

IC-7610 Salient Features

• Direct-sampling/digital up-conversion HF/6m transceiver with two independent, identical receivers

• MAIN and SUB receivers can operate independently on different bands and modes (emissions)

• SUB receiver tuning knob available by plugging RC-28 controller into front-panel USB-A port

• MAIN/SUB Tracking (simultaneous tuning) from main tuning knob (enabled by menu option)

• Each receiver front end has dedicated ADC, ADC driver/preamp, 0-45 dB X 3 dB step attenuator, BPF group and Digi-Sel tracking preselector

• Separate DAC/audio chains for MAIN and SUB receivers; binaural reception possible

• Powerful ALTERA® RF FPGA performs digital down/up conversion, frequency-management and signal-processing tasks

• Separate Lattice® Common FPGA performs signal-processing tasks

• Separate AF/SQL controls and EXT SP jacks for MAIN and SUB receivers

• Independent MAIN and SUB real-time FFT spectrum scope/waterfall displays with high dynamic range (100 dB)

• Separate scope RBW (resolution bandwidth) and VBW (video bandwidth) adjustments in Spectrum Scope menu

• Independent MAIN and SUB spectrum scope/waterfall displays(can be stacked L/R or MAIN above SUB)

• Dual clock displays (UTC and local time)

• Headphone left/right mix can be turned on or off

• MULTI knob for easier operation  (similar to IC-7300)

• ANT1 and ANT2 ports with switched hybrid splitter for user-selectable dual-antenna (e.g. diversity) or Dual Watch configurations

• RX ANT IN/OUT BNC break jacks switchable between MAIN and SUB receiver

• 10 MHz EXT REF I/O and Transverter I/O BNC jacks

• NTP (Network Time Protocol) server connectivity (when IC-7610 is connected to Internet)

• RF-FPGA has MAIN and SUB inputs (from ADC's) and outputs (to DAC's), and display data channel to display driver subsystem

• CW keying waveform generation & shaping in FPGA to minimise latency

• CW RX APF function with adjustable position (f₀), width and AF gain

• Low-noise, high-performance 16-bit ADC's (Linear Technology LTC2208I); sampling rate 122.88 MHz

• Low-noise ADC driver with high gain-bandwidth product (Linear Technology LTC6409)

• High-quality 24-bit, 192 kHz stereo audio codec encodes transmit audio and decodes Main and Sub receive audio

• Digital up-conversion (DUC) exciter and 14-bit DAC (ISL5961IAZ) offer exceptionally low TX phase noise and clean transmitted signal

• New low-phase-noise clock oscillator with Crystek ultra-low-noise VCXO provides high target RMDR of 105 dB (1 kHz offset), 110 dB (2 kHz offset) and excellent transmitter phase noise performance

• Common low-noise power supply for the VCXO and FPGA helps assure ultra-low phase noise

• 100W MOSFET PA unit with fast T/R switching

• High-speed relay-type auto-ATU with emergency mode to match highly-reactive antennas

• Ethernet LAN port supports internal RS-BA1 server as in IC-7851, IC-7700 (FW V2.0 & higher), IC-7800 (FW V3.0 & higher)

• LAN Output Select menu option for AF (baseband) or IF

• Multiple memory functions

• Two rear-panel USB-B ports (USB2 & USB3) for CAT control/PCM audio & I/Q baseband output (now supported in Firmware V1.20).

• Future 12 kHz final IF I/Q output via firmware upgrade

• Two front-panel USB-A ports for USB stick, mouse, RC-28 controller, keyboard etc.

• SD card slot for data capture, record/playback, firmware upgrade etc.

• Firmware upgrade via SD card or USB stick

• External meter and keypad jacks on rear panel

• 7" (diagonal) high-definition touch-screen display

• Screen image capture to SD card

• Scope/waterfall windows can be stacked side-by-side or MAIN above SUB

• Spectrum scope scrolling mode and per band REF LEVEL memory (Firmware V1.30)

• Multi-purpose real-time audio scope and FFT audio spectrum analyzer

• Rear-panel DVI-D port for external video display

• External display resolution selectable via menu: 800X600 or 800X480

• Large RAM reserve for future firmware expansion

• Dimensions & weight: 340 (W) X 118 (H) X 277 (D) mm, 8.5 kg

• Operating refinements:

• Mute band by pressing corresponding volume knob

• Mic DC bias can be disabled for dynamic mc

• Keyer memories can use F1-F8 on keyboard

• Can record and capture directly to USB drive or SD card

• Adjustable independent beep tones for the main and sub bands from 500-2000Hz

Spectrum scope comparison, IC-7610 vs. IC-7600:

Note: All the above information was derived from published data per the links below, and is subject to change without notice.

FCC ID: AFJ386400, granted 6 November 2017.

Industry Canada Certification: 202D-386700, granted 17 November 2017.
